Introduction

The Iowa Environmental Mesonet (IEM) provides public access to many meteorological and hydrological observing networks. IEM groups stations into network identifiers such as IA_ASOS, IA_COOP, and many state or special-purpose networks.

preMetabolizer provides helpers for selected IEM API v1 endpoints:

iem_networks() lists available IEM network identifiers.
iem_stations() retrieves station metadata for one network.
iem_station() looks up one station identifier across networks.
iem_current() retrieves current observations.
iem_ob_history() retrieves one local day of station observations.
iem_daily() retrieves daily summary observations.

Note: These functions contact IEM web services and require an internet connection. Set PREMETABOLIZER_RUN_VIGNETTES=true to run the API chunks; they are skipped by default during package installation and checks.

library(preMetabolizer)
library(dplyr)
library(ggplot2)

Caching downloaded data

Repeated calls to the IEM API download the same data on every run. This vignette saves each result to a local cache directory the first time it is downloaded and reloads from disk on subsequent runs. The cache lives in tools::R_user_dir("preMetabolizer", which = "cache"), a platform-appropriate, user-specific directory that persists across sessions. Each data-fetching chunk below checks for a cached .rds file, downloads and saves on the first run, and reloads from disk on all subsequent runs.

Discover networks and stations

Start with iem_networks() when you need to find the exact network identifier for a station source. The network column is the value to pass to other IEM helpers.

cache_file <- file.path(cache_dir, "iem_networks.rds")
if (!file.exists(cache_file)) {
  networks <- iem_networks()
  saveRDS(networks, cache_file)
} else {
  networks <- readRDS(cache_file)
}

networks |>
  filter(grepl("Iowa", network_name)) |>
  select(network, network_name, tzname)

Station metadata for a network includes station identifiers, names, coordinates, archive dates, and the station time zone when IEM provides it.

cache_file <- file.path(cache_dir, "iem_stations_ia_asos.rds")
if (!file.exists(cache_file)) {
  ia_asos <- iem_stations("IA_ASOS")
  saveRDS(ia_asos, cache_file)
} else {
  ia_asos <- readRDS(cache_file)
}

ia_asos |>
  select(station_id, station_name, network, tzname, archive_begin, longitude, latitude) |>
  arrange(station_id)

Some station identifiers appear in more than one network. Use iem_station() when you want to check how IEM resolves a station ID before requesting data.

cache_file <- file.path(cache_dir, "iem_station_amw.rds")
if (!file.exists(cache_file)) {
  amw <- iem_station("AMW")
  saveRDS(amw, cache_file)
} else {
  amw <- readRDS(cache_file)
}

amw |>
  select(station_id, station_name, network, tzname, archive_begin)

Retrieve current observations

iem_current() requires at least one filter. You can request all current observations in a network, stations within a network, stations by forecast office, or one or more station identifiers.

cache_file <- file.path(cache_dir, "iem_current_ia_asos.rds")
if (!file.exists(cache_file)) {
  current <- iem_current(network = "IA_ASOS")
  saveRDS(current, cache_file)
} else {
  current <- readRDS(cache_file)
}

current |>
  select(station_id, station_name, utc_valid, tmpf, dwpf, sknt, drct, mslp) |>
  arrange(station_id)

For station-specific work, include both network and stations so shared station identifiers do not surprise you.

cache_file <- file.path(cache_dir, "iem_current_dsm_amw.rds")
if (!file.exists(cache_file)) {
  dsm_current <- iem_current(
    network = "IA_ASOS",
    stations = c("DSM", "AMW"),
    minutes = 120
  )
  saveRDS(dsm_current, cache_file)
} else {
  dsm_current <- readRDS(cache_file)
}

dsm_current |>
  select(station_id, station_name, utc_valid, tmpf, relh, sknt, pres)

Retrieve one day of observations

iem_ob_history() returns observations for a single station and local station date. UTC timestamp columns are parsed as UTC POSIXct values. Local timestamp columns are returned as character values because station time zones vary across networks.

cache_file <- file.path(cache_dir, "iem_ob_history_dsm_2024-06-01.rds")
if (!file.exists(cache_file)) {
  obs <- iem_ob_history(
    station = "DSM",
    network = "IA_ASOS",
    date = "2024-06-01"
  )
  saveRDS(obs, cache_file)
} else {
  obs <- readRDS(cache_file)
}

obs |>
  select(utc_valid, local_valid, tmpf, dwpf, sknt, drct, p01_i)

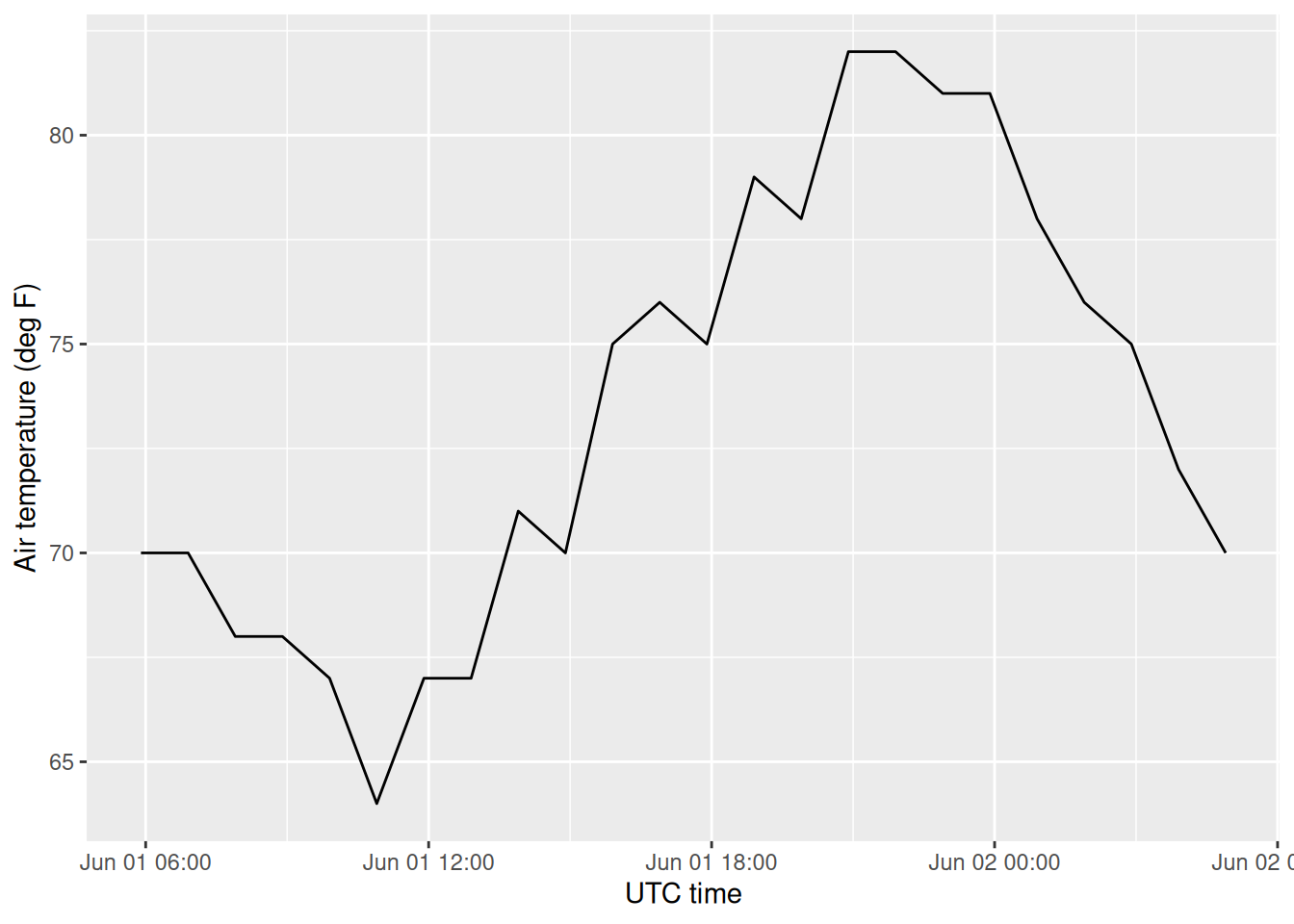

Hourly or sub-hourly records can be plotted directly after selecting the variables you need.

obs |>
  filter(!is.na(tmpf)) |>
  ggplot(aes(utc_valid, tmpf)) +
  geom_line() +
  labs(
    x = "UTC time",
    y = "Air temperature (deg F)"
  )

Retrieve daily summaries

Use iem_daily() for daily summary observations. Provide either one date, or provide year and optional month for a longer request.

cache_file <- file.path(cache_dir, "iem_daily_dsm_2024-06.rds")
if (!file.exists(cache_file)) {
  dsm_daily <- iem_daily(
    network = "IA_ASOS",
    station = "DSM",
    year = 2024,
    month = 6
  )
  saveRDS(dsm_daily, cache_file)
} else {
  dsm_daily <- readRDS(cache_file)
}

dsm_daily |>
  select(station_id, date, max_tmpf, min_tmpf, precip) |>
  arrange(date)

For a one-day network request, omit station and supply date.

cache_file <- file.path(cache_dir, "iem_daily_ia_asos_2024-06-01.rds")
if (!file.exists(cache_file)) {
  ia_day <- iem_daily("IA_ASOS", date = "2024-06-01")
  saveRDS(ia_day, cache_file)
} else {
  ia_day <- readRDS(cache_file)
}

ia_day |>
  select(station_id, date, max_tmpf, min_tmpf, precip) |>
  arrange(desc(date))

Practical notes

IEM combines many observing networks, and each network can have different available variables, units, reporting intervals, and station identifiers. A good workflow is to first inspect iem_networks() and iem_stations(), then request observations from a specific network and station pair.
